UniPi / Evok
Evok
Evok REST API is used to interract with IO ports of UniPi
Evok is running as a service. Available commands:
sudo service evok status
sudo service evok restart
For Home_Alarm software, Evok is configured to listen on localhost port 81.
This specific conf is saved here: ~/Prod/home_alarm/etc/nginx/evok
Hardware
Configuration for Home Alarm
set jumpers JP2 and JP5 (digital inputs bind to external GND: I05 to I14)
Digital inputs Configuration
Spec: 0 to 24V. Wiring: see https://www.unipi.technology/tutorial/using-digital-inputs-unipi-1-74
Inputs are bind with Unipi GND. Two "12v out" connectors provide HIGH state. Then it is possible to read the state of an open/closed contact.
If an external HIGH state is used, then the ground of the input must be bind to the external LOW/GND (external power GND). To use this kind of conf, JP2 must be set, then JP3/JP4/JP5 must be configured as follow:
| Jumper | Reference GND connected to | Available inputs with ext power | conf for Home_Alarm |
|---|---|---|---|
| JP2 | P02 connected to 12v | ON | |
| JP3 | (gnd bind P02) | I01 and I02 | ON |
| JP4 | (gnd bind P01) | I03 and I04 | |
| JP5 | (gnd bind P01) | I05 to I14 |

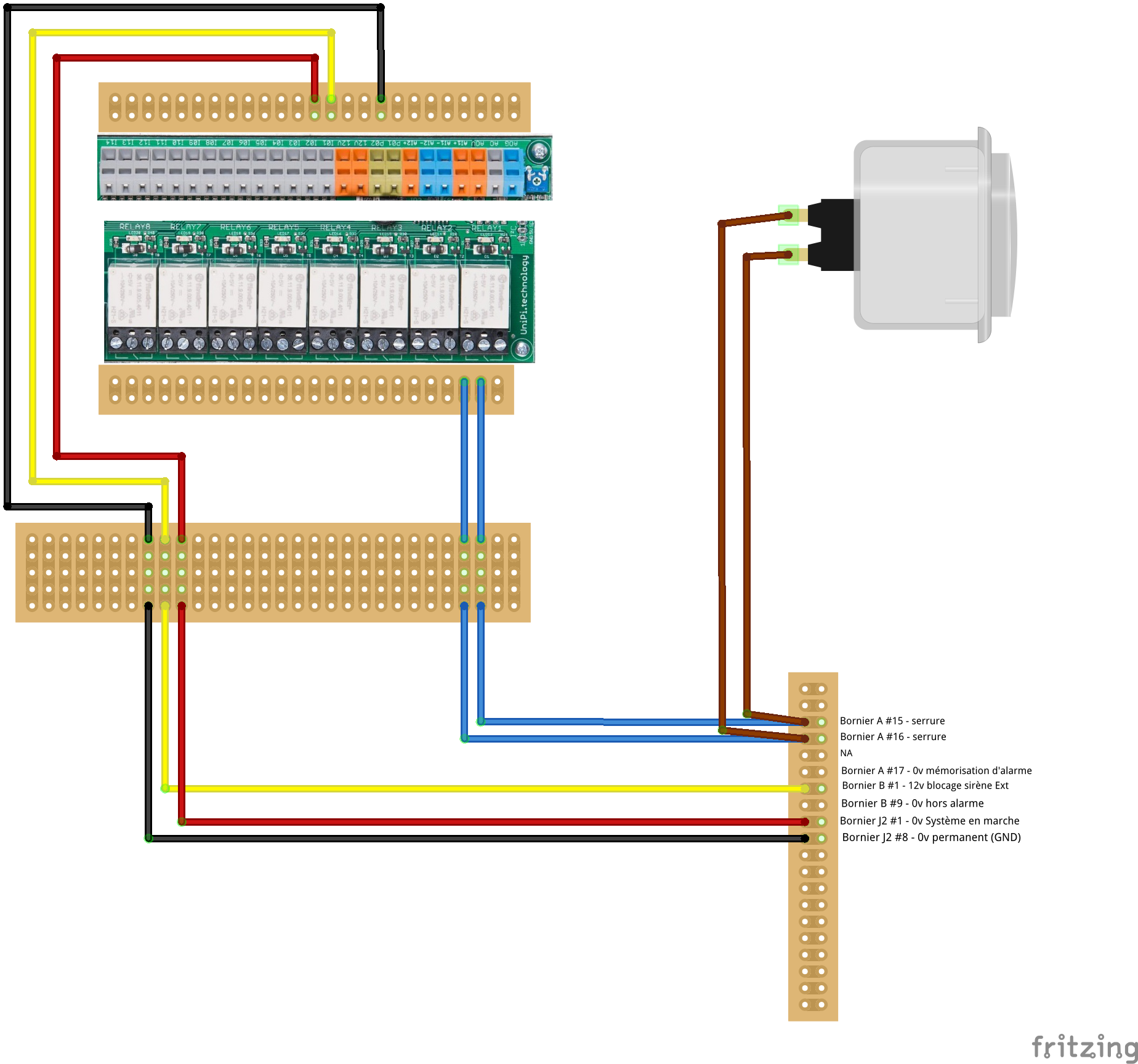

Wiring
| NoxAlarm | Couleur cable | Unipi | HomeAlarm | in inverse | out pulse |
|---|---|---|---|---|---|
| bornier A #15 - serrure | bleu | R1 Relay Output | out_power | TRUE | |
| bornier A #16 - serrure | bleu | R1 Relay Output | out_power | TRUE | |
| bornier B #1 - 12v blocage sirène Ext | jaune | I01 Digital Input (gnd bind P02) | in_alert | TRUE | |
| connecteur J2 #1 - 0v Système en marche | rouge | I02 Digital Input (gnd bind P02) | in_power | TRUE | |
| connecteur J2 #8 - 0v permanent (GND) | noir | P02 Configurable port |
